6" PDC Hole Opener / Reamer – 5-Wing, 13.44 mm PDC Cutters

For HDD • Underground Utility Construction Drilling

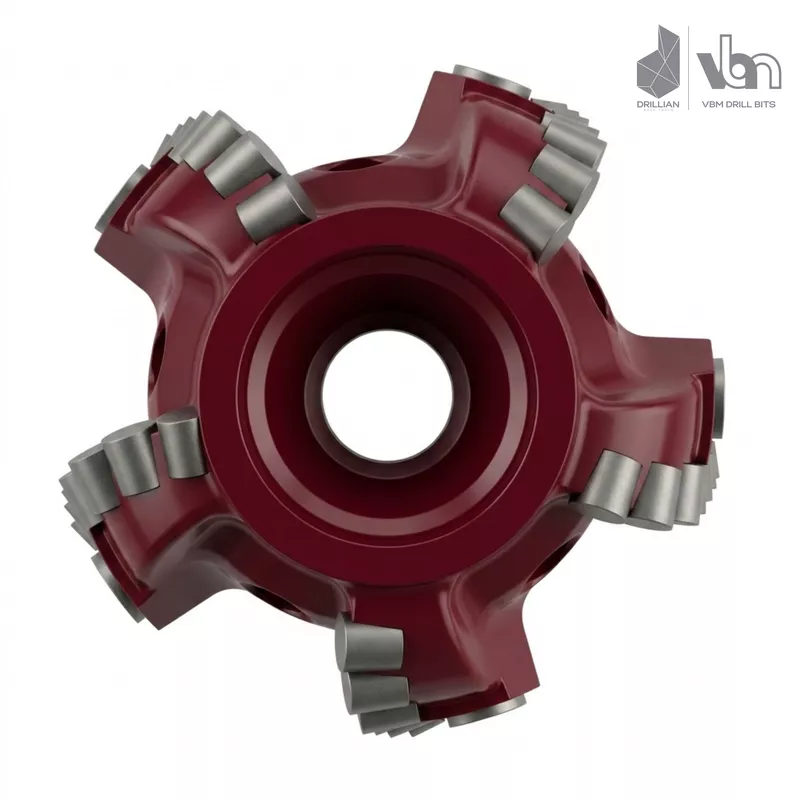

The VRX513H 6" PDC Reamer is a heavy-duty 5-wing PDC hole opener designed for efficient hole enlargement and reaming applications where cutting performance, durability, and gauge protection are critical.

Built from 4145H high-strength alloy steel, the reamer features a robust 5-wing body equipped with a combination of main, edge, and gauge PDC cutters. The cutting structure includes 21 triangle PDC main cutters, 13 edge PDC cutters, and 15 gauge-protection PDC cutters, providing effective formation cutting while helping maintain hole size and reamer stability.

The main cutting structure uses 13.44 × 13.2 mm PDC cutters, while the edge and gauge areas utilize progressively smaller cutters to provide dedicated cutting and gauge protection. Carbide hardfacing further protects the body and wear surfaces in demanding drilling conditions.

The reamer is configured with API 2 3/8" REG Box × 2 3/8" REG Box connections and incorporates five flush nozzles for efficient fluid delivery and removal of drilled cuttings. 4/32" flush nozzles are available as an optional configuration.

Key Features

• 6" (152.4 mm) hole opener / PDC reamer

• 5-wing heavy-duty body

• 4145H alloy steel body

• 21 triangle PDC main cutters – 13.44 × 13.2 mm

• 13 edge PDC cutters – 13.44 × 8.0 mm

• 15 gauge protection PDC cutters – 13.44 × 5.2 mm

• 5 flush nozzles

• Optional 4/32" nozzles

• Carbide hardfacing for enhanced body and wear protection

• API 2 3/8" REG Box × 2 3/8" REG Box

• Designed for efficient hole enlargement and reaming operations

Typical Applications

• HDD / Horizontal Directional Drilling

• Oil & Gas Drilling

• Water Well Drilling

• Geothermal Drilling

• Construction Drilling

• Hole Enlargement & Reaming

The VRX513H combines a durable 4145H steel body, multi-stage PDC cutting structure, dedicated gauge protection, and carbide hardfacing to provide a rugged solution for demanding hole-opening applications.

• Size
  6
• Circulation Type
  Jet Fluid
• Cutting Structure
  PDC
• Formation Type
  Hard
• Industry
  HDD
• API Thread Size
  Box 2 3/8" Reg
• Flush Holes/Jets Qty
  5
